How to measure for panel warp

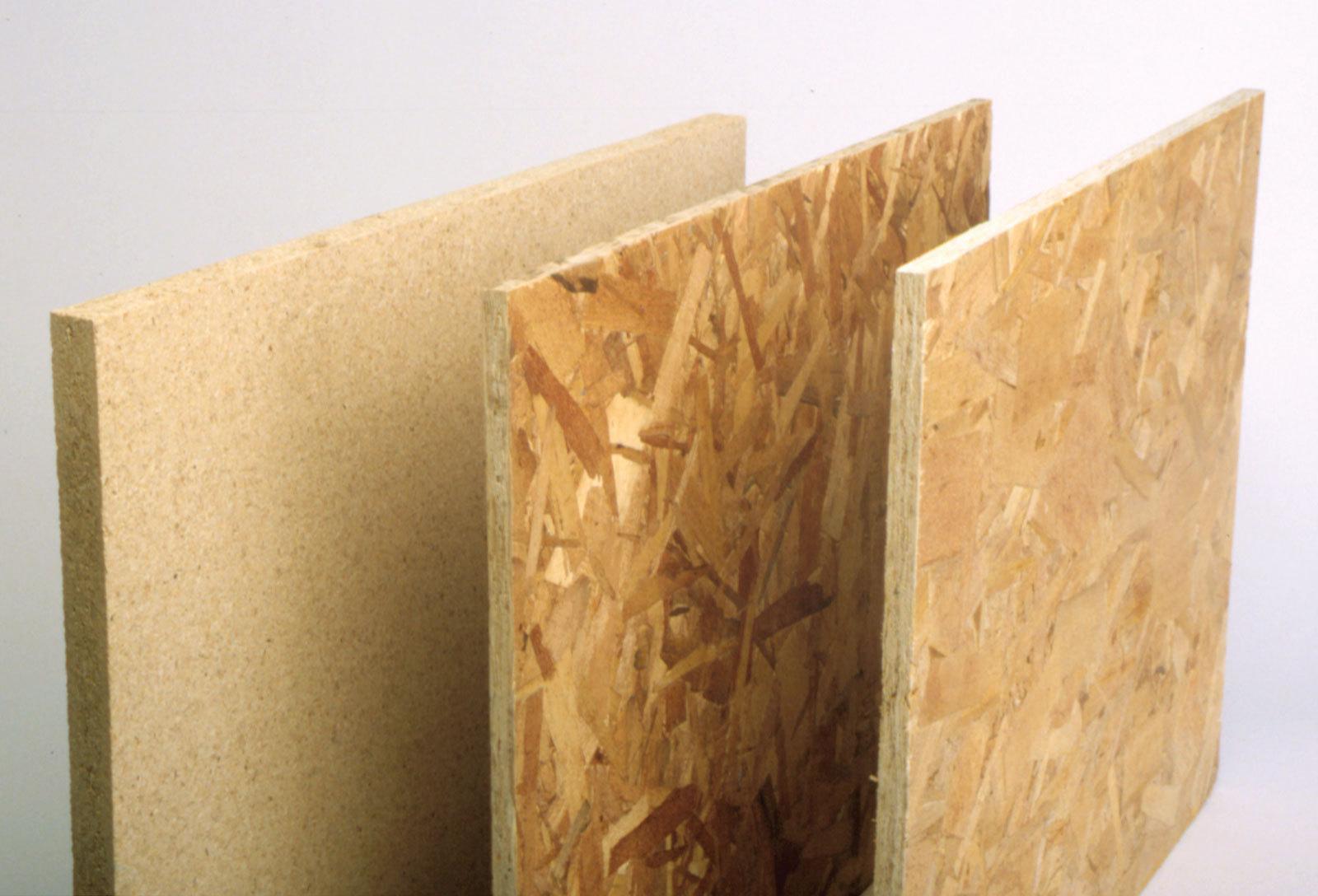

Photo By Composite Panel Association

Panel warp is determined by measuring for cup, bow, or twist. This is done with the panel standing in a vertical position (± 5 degrees).

Cup is defined as a deviation from flatness in a plane oriented along the short dimension or width of a panel. To measure the amount of cupping, a calibrated straight edge or a thin cord is stretched vertically on the concave side at each end (corner to corner) and at the midpoint of the panel (edge to edge).

Bow is the deviation from flatness along the long dimension (length) of a panel. To measure, a calibrated straight edge or a thin cord is stretched horizontally along the length of the panel on the concave side and stretched between each set of opposing corners and the midpoint of each vertical edge.

Twist is the term used for a deviation from a flat plane between diagonal corners. The twist values are determined by stretching a calibrated straight edge or a thin cord between each pair of diagonal corners on the concave side.

The measurement of the maximum deviation between the panel and the panel side surface of the straight edge or taut cord is made with a suitable instrument, such as an indicator or caliper,  at each location and all three values are reported to the nearest 1/64 inch (0.4mm) as cup, bow or twist values for the panel.
