Steinway's Sound Piano Manufacturing Practices
Click on the image to open

Photo By Steinway & Sons

Click on the image to open
Belly bridge notching. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Working on the underside of a soundboard. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Top view of the case. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Edge coating. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Tuning pins hold the piano strings in place. Photo: Steinway & Sons

Photo By Photo: Steinway & Sons

Click on the image to open
Closeup showing the dampers, strings and cast-iron plate. Photo: Steinway & Sons

Photo By Photo: Steinway & Sons

Click on the image to open
Dampers on piano strings. Photo: Steinway & Sons

Photo By Photo: Steinway & Sons

Click on the image to open
A Steinway & Sons Model D concert grand piano. Photo: Steinway & Sons

Photo By Photo: Steinway & Sons

Click on the image to open

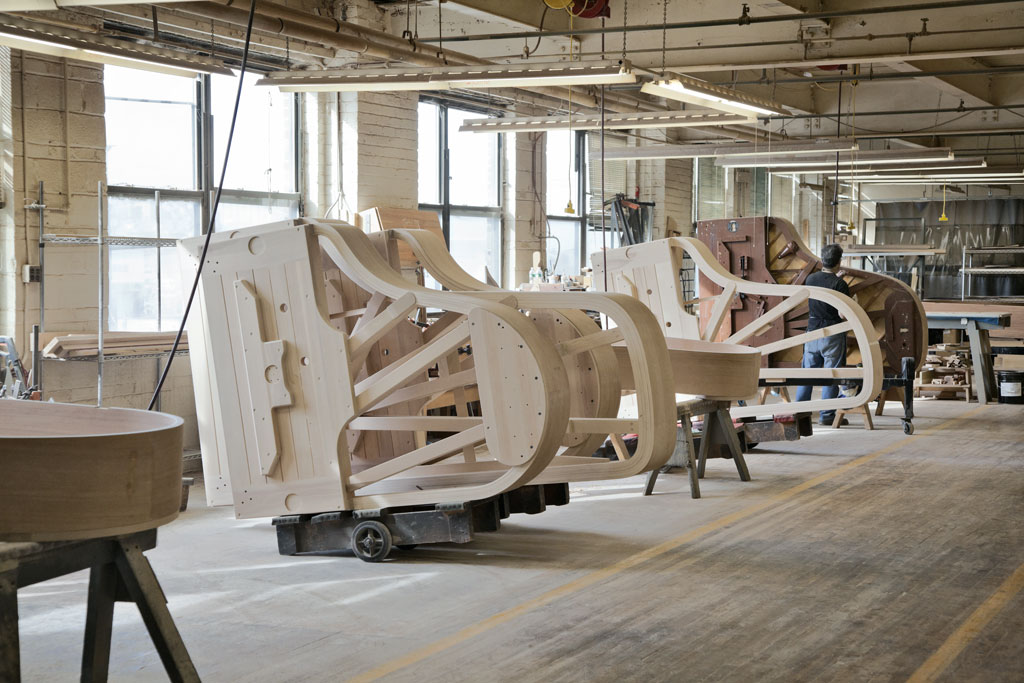

Piano cases inside the shop. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Preparing for rim bending. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Steinway rim conditioning. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Piano rim laminations. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
A closeup of a piano rim press awaiting a rim. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Removing the rim from the press. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Soundboard gluing. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Click on the image to open
Gluing the soundboard ribs. Photo: Steinway & Sons/Photographer: Chris Payne

Photo By Photo: Steinway & Sons/Photographer: Chris Payne

Steinway Musical Instruments made news last month with its acquisition by investment firm Paulson & Co. With the transaction — valued at approximately $512 million — now complete, Steinway becomes a privately-held company.

The firm’s high market value can be attributed to its 160-year history for manufacturing top-quality pianos and musical instruments.

At the New York Steinway & Sons factory, one of two locations for manufacturing the company’s pianos, the company uses a combination of technology and handcraftsmanship to manufacture the essential components, including the case, plate, soundboard, bridges, wrestplank and more.

The most visible feature on the piano is its case. Steinway manufactures the rim for the case from multiple laminations of hard rock maple pressed into form; according to the company, 10 to 17 laminations of hard rock maple is used for the rim of a grand piano. Spruce is used for the braces and posts.

The cast-iron plate, located in the case above the soundboard, is fabricated in Steinway’s own foundries. The soundboard itself is constructed from quartersawn Sitka spruce, which the company says allows for better sound and amplification.

Tracking Steinway

Steinway Agrees to Buyout by Paulson

Kohlberg Bids on Buying Steinway

After Review Steinway Says It Wont's Sell




Glued to the top of the soundboard are bridges, “constructed from vertically laminated hard rock maple with a solid maple cap. They are bent to a specifically-defined contour to assure optimum sound transmission.” The bridges are glued and doweled into the ribs.

The tuning pins, which keep the more than 200 strings taut, are fitted into the wrestplank, made from hard rock maple planks. When the keys are pressed, the movement is transmitted from a felt-covered hammer to the strings. Steinway says the keys on its pianos are made from Bavarian spruce with a polymer finish.

For more information on Steinway pianos, visit Steinway.com
