Small footprint sander

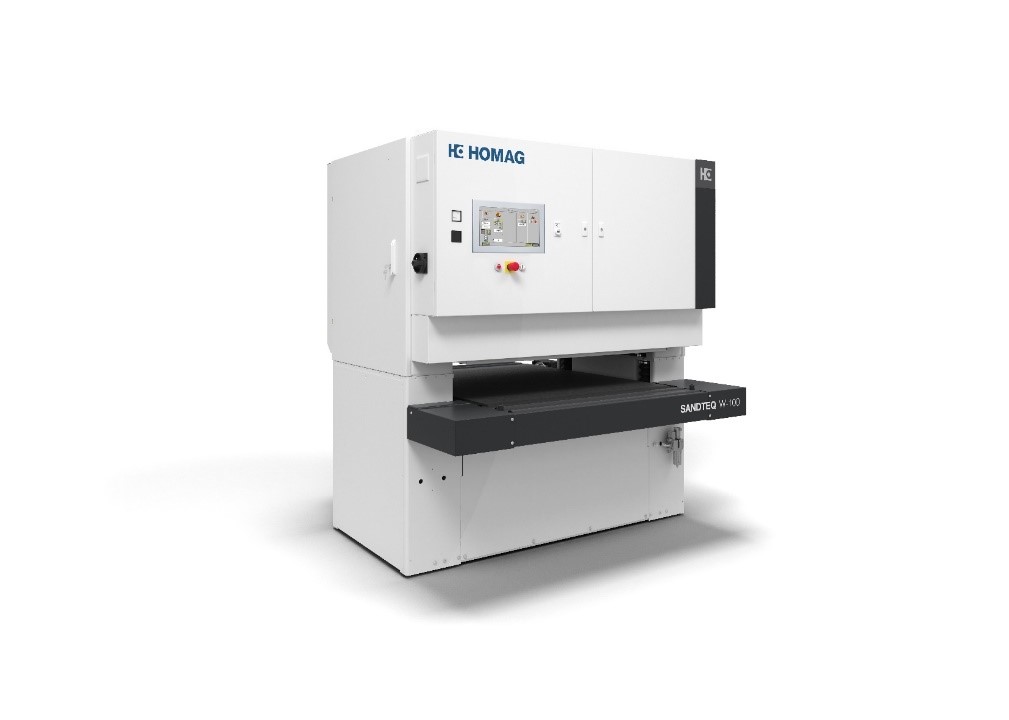

Homag's Sandteq W-100 (124RC) widebelt sander is designed to be a small footprint sander with a big impact for a smaller shop. It can calibrate, finish sand solid wood and veneer. It has two independently controlled sanding heads that are activated by the touch screen machine controller.

Basic Specifications:

  • Sanding width: 43” (1100mm)
  • Abrasive belt size: 44” X 75” (1120 X 1900mm)
  • Controlled heads
  • Head 1: steel contact roller, 23 Hp, 18 M/S cutting speed
  • Head 2: combi head with segmented platen, 17 Hp, 12 M/S cutting speed, 60 shore rubber roller, EPS segmented platen with 35mm width, air jet belt cleaning
  • 15.6” color touchscreen control
  • Inverter controlled feed speed
  • Roller infeed table
  • Moving passline height

Applications:

•         Calibration Sanding
•         Finish Sanding Solid Wood
•         Veneer Sanding
