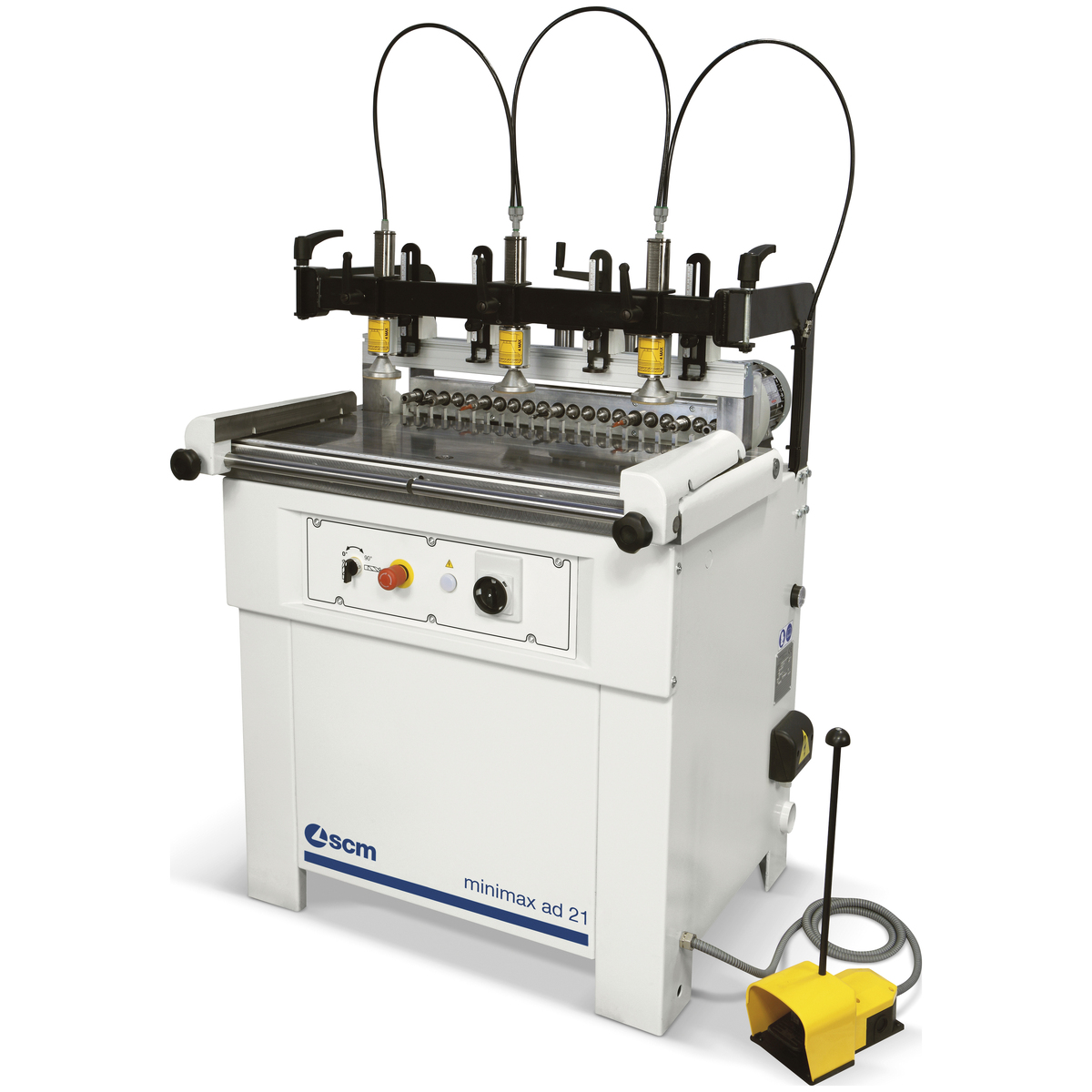

The minimax ad 21 from SCM Group is a semiautomatic drilling machine for woodworking and tailor-made artisan production. Drilling unit with 21 spindles preset for quick changes - all equipped with drilling bit-holder bushes diameter 10 mm.

Standard equipment:

• Pneumatic adjustment of the horizontal and vertical drilling head position
• Two pneumatic hold down clamps
• Height-adjustment of the drilling unit by means of hand wheel, with mechanical readout
• Drilling depth adjustment from 0 to 60 mm by means of 5 positions revolver
• Automatic depth differential system for 0° / 90° coupling drilling (dowels)
• Rear stops for assembling bores maximum precision
• Lateral fence (length 3000 mm – 9.8’) with retractable flip-stops for large panels
• Adjustable lateral stops complete with metrical reading bar
• Calibration compass (second pic above), for fast and precise positioning of lateral fences
