Planer, moulder, and rip saw
August 21, 2023 | 6:21 am CDT

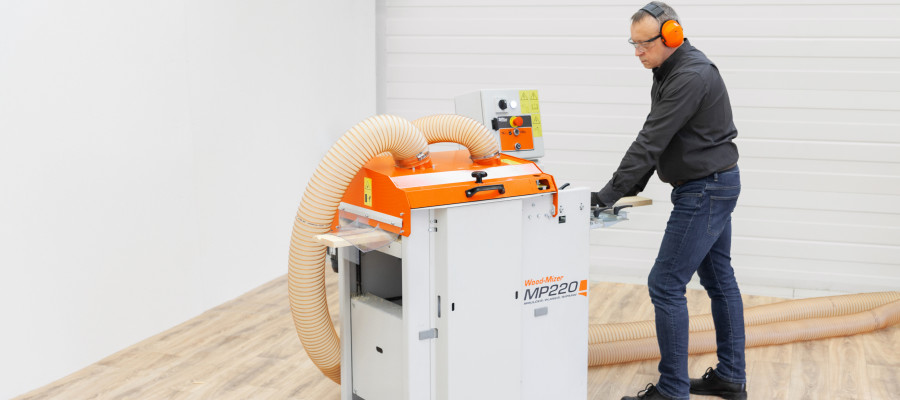

The MP220 Planer Moulder Rip Saw from Wood-Mizer is a three-in-one woodworking machine able to produce finished wood trim, flooring, and dimensional lumber from rough-sawn material.

With the MP220, planing or moulding and rip sawing material can be accomplished in one pass to increase production and profitability while saving time. The MP220 features one horizontal cutter for planing or moulding and one circular saw blade for rip sawing or resawing material. The horizontal cutter can be fitted with planing knives or moulding profile knives to produce finished boards and mouldings with a capacity of 3/8” to 15-3/4” wide by 5/8” to 9-1/2” high. Edging or rip sawing of material is accomplished by the adjustable 9” diameter circular saw blade with a rip sawing capacity of 4-1/2” to 11” wide by 3-1/8” high.

For accurate and consistent results, two steel and one polyurethane feed rollers efficiently move material on the heavy-duty cast-iron table through the horizontal cutter and rip saw blade at a variable speed. In addition, the compact size and optional casters save floor space and provide flexibility to move the MP220 around the workshop.
