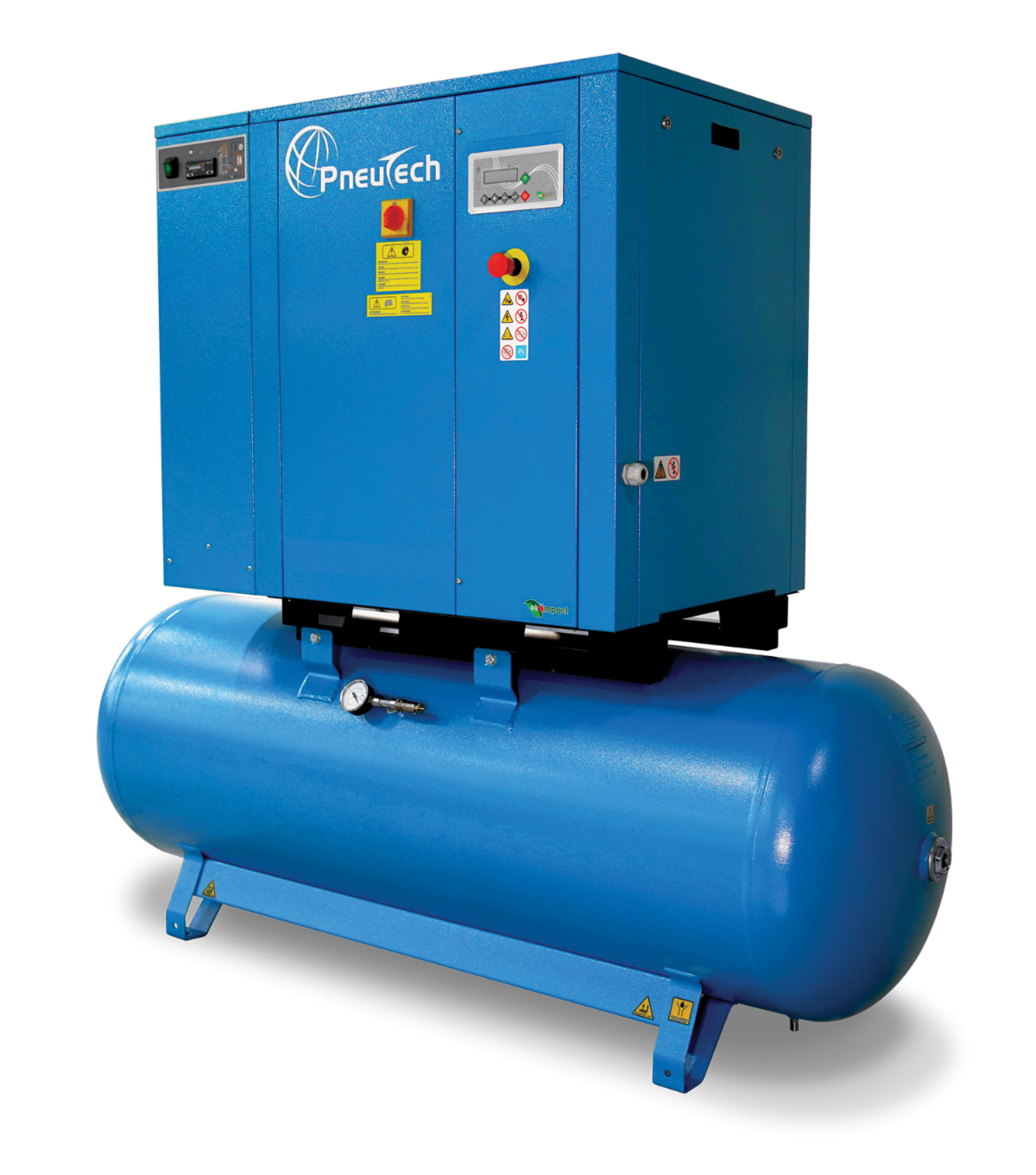

The RK rotary screw air compressor fixed speed series with integrated dryer available from PneuTech delivers consistent, dry, clean air while optimizing both cost and floor space, the company says. It features a streamlined design that minimizes the need for extensive piping and electrical connections typically required for standalone dryers, significantly conserving valuable floor space and reducing installation costs.

The compact models are available in models ranging from 5-20 hp (19.9–73.8 CFM), and are designed for straightforward operation. Each unit comes equipped with a digital dewpoint indicator and an electronic dryer controller, which monitors the compressed air's dewpoint and manages the condensate drain.

The design prioritizes serviceability and safety, featuring an easily removable panel allowing quick access to all key dryer components. This simplifies maintenance tasks, such as cleaning condenser coils and performing repairs. Additionally, every model has a service valve between the receiver tank and the dryer module, ensuring safety during maintenance or repair activities.

The single-point condensate drain simplifies connections to the condensate management system using a 1⁄4” line. Additionally, a conveniently accessible cabinet filter, standard on all RK Series air compressors, is washable and promotes prolonged filter life, reducing overall maintenance requirements.

RK Fixed Speed Rotary Screw Air Compressors also feature an oversized air-oil separator tank and element to facilitate effective three-stage separation, achieving less than 3 ppm oil carryover and a pressure drop of less than 0.02 bar. The highest air quality is assured with renowned Mann filtration.
