Solid Wood Pipe Organ Desk is Full of Puzzles and Sounds
Click on the image to open

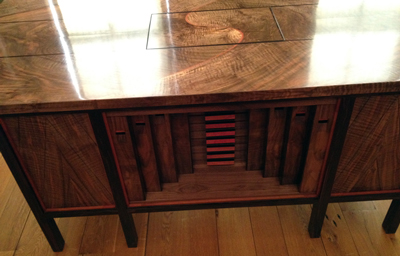

Solid wood pipe organ desk

Photo By Kagen Sound

Click on the image to open
If the correct sequence of notes or tune is played, a secret compartment opens up.

Photo By Kagen Sound

Click on the image to open

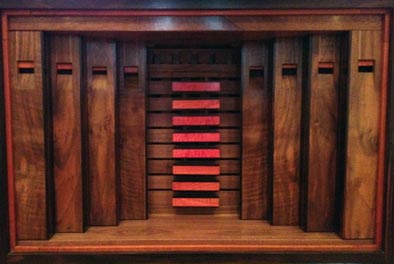

Pneumatic memory board and organ pipe octave.

Photo By Kagen Sound

Click on the image to open

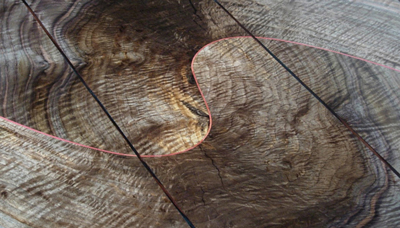

Woodgrain the desktop.

Photo By Kagen Sound

Click on the image to open

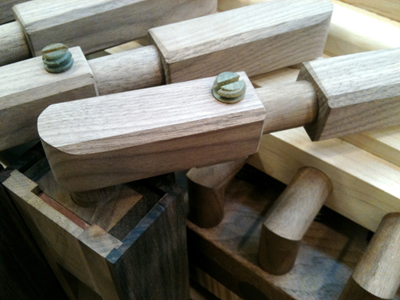

Wooden air connectors inside the desk.

Photo By Kagen Sound

Click on the image to open

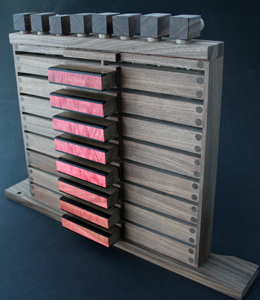

The final version of the pneumatic memory board.

Photo By Kagen Sound

Click on the image to open

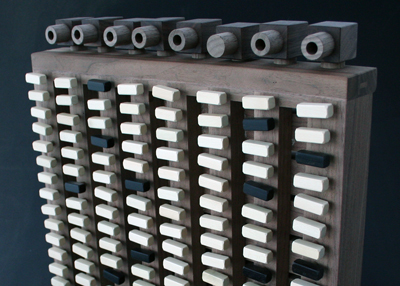

Adjusting these pegs on the back of the memory board changes the tune it reads. The dark pegs represent the notes of the song.

Photo By Kagen Sound

Click on the image to open

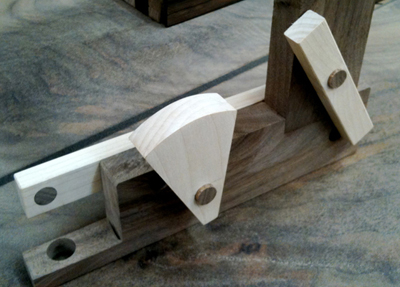

Part of the pendulum lock.

Photo By Kagen Sound

Click on the image to open

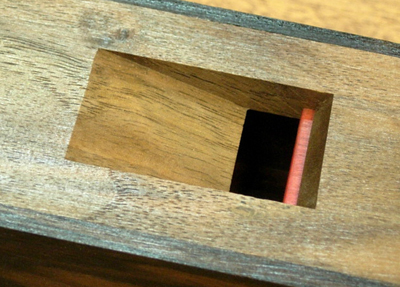

The mouth of an organ pipe. This can be adjusted to play any note within an octave. All organ pipes can be tuned to perfect pitch.

Photo By Kagen Sound

Click on the image to open

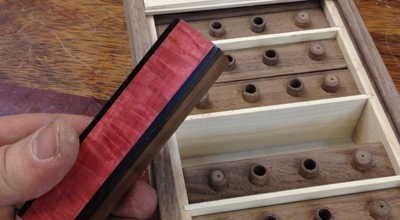

An individual logic switch from the memory board. In the background are extra switches showing the nodes where air enters the switch. When air enters one side it either closes or opens the path for a second source of air to flow in and out through the central holes.

Photo By Kagen Sound

Click on the image to open
All large drawers have puzzles inside. You will need to solve these puzzles to open other drawers or find secret compartments.

Photo By Kagen Sound

Click on the image to open

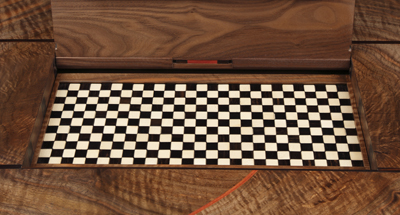

A secret button opens the center of the desk revealing a checker pattern. If you find a way to rearrange it into a key pattern the center drawers unlocks.

Photo By Kagen Sound

Click on the image to open
Hidden in the desk are over 20 other puzzles and secret compartments.

Photo By Kagen Sound

Click on the image to open

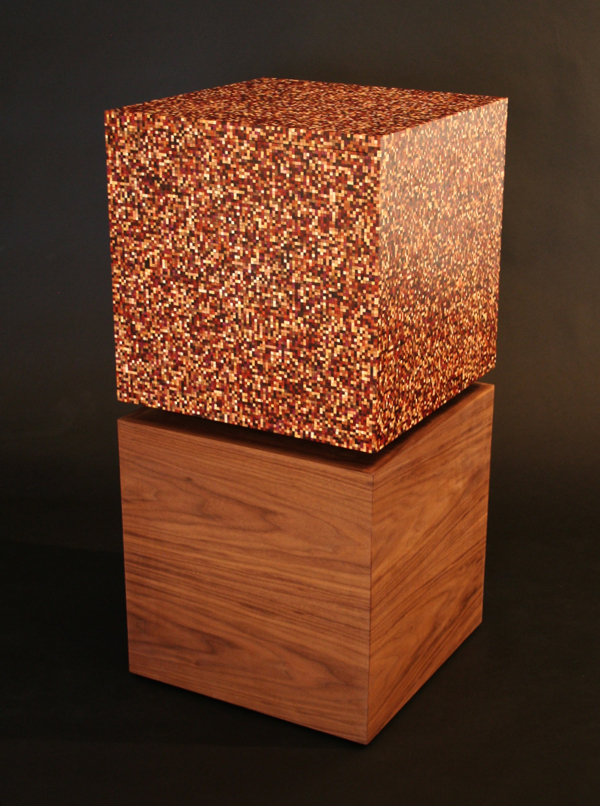

Kagen Sound also created this piece called Cubit. Comprised of over 59,000 tiny cubes of wood, with a variety of materials including: bloodwood, holly, walnut, pau armarello, purpleheart, red grandis, wenge, poplar, paduk and oak, it finished with shellac and resin and priced at $45,000.

Photo By Kagen Sound

This pipe organ desk, created by artist and woodworker Kagen Sound, is made entirely from solid wood down to the last screw. It features an octave of functional wooden organ pipes. If the correct sequence of notes or tune is played, a secret compartment opens up.

When you push in a drawer, air is directed to one of the organ pipes at the front of the desk, sounding a note. Some of the air is also directed into a pneumatic memory board. The memory board within the desk actually keeps track of the notes played and work on the same pricipal that computers store memory. In this case it remembers the notes played. When it picks up the correct tune it triggers a pendulum which opens a secret compartment.

The memory board, can be reprogrammed to read a different song. It is powered entirely by air flow from the drawers, and it is made entirely from solid wood. Also, hidden in the desk are over 20 other puzzles and secret compartments storing clues and scraps of information for anyone on a quest to play the correct song. A wooden inlayed score of music must be assembled if you are to know the song.

Kagen Sound

One of Sound's prized pieces on his website sells for $45,000. Called Cubit, it is made of the following materials: bloodwood, holly, walnut, pau armarello, purpleheart, red grandis, wenge, poplar, paduk and oak. Finished in shellac and resin, the piece has over 59,000 tiny cubes of wood.

Sound (formerly Kagen Schaefer) has been designing and making secret opening boxes for 12 years. He is acknowledged by the Karakuri Creation Group in Japan, a guild of secret opening box makers, as a master box maker, and has received many awards for his designs from the international NobYoshigahara Puzzle Design Competition.

Sound attended Colorado College and received a Bachelor of Arts in Mathematics, with honors, in 2000. Find out more about his work at kagensound.com.
