Vacuum clamping system holds workpieces in production
February 22, 2016 | 2:57 pm CST

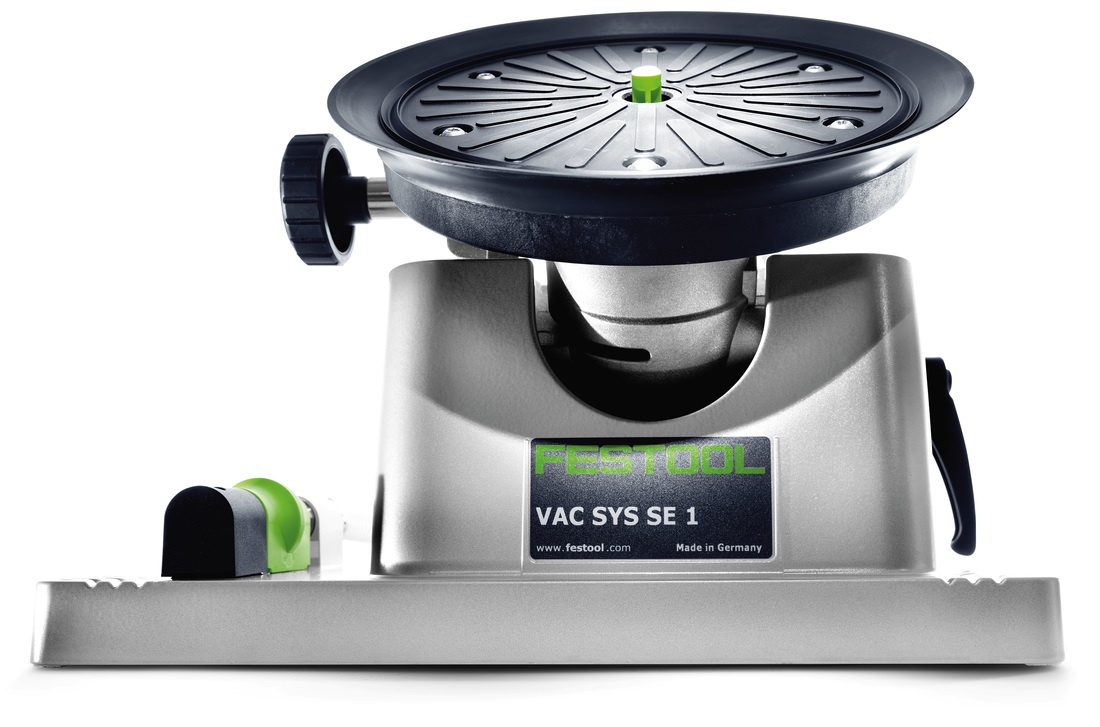

The VAC SYS System uses vacuum-based suction clamping to establish an ergonomic work platform to hold workpieces for any project. It can be used to clamp material or a workpiece for machining and finishing, while protecting delicate surfaces from clamp damage.

Each clamping module is equipped with a suction base that adheres to non-porous surfaces, with a quick release valve, and which can adapt to many surface sizes based on interchangeable vacuum cups (available separately).

For clamping larger material and doubling the clamping power, two clamps can be used at once. Uses can also quickly adapt the clamping module to various material sizes and shapes with the use of interchangeable vacuum cups (available individually or as a set).
