Upcut saw
July 30, 2020 | 4:49 pm CDT

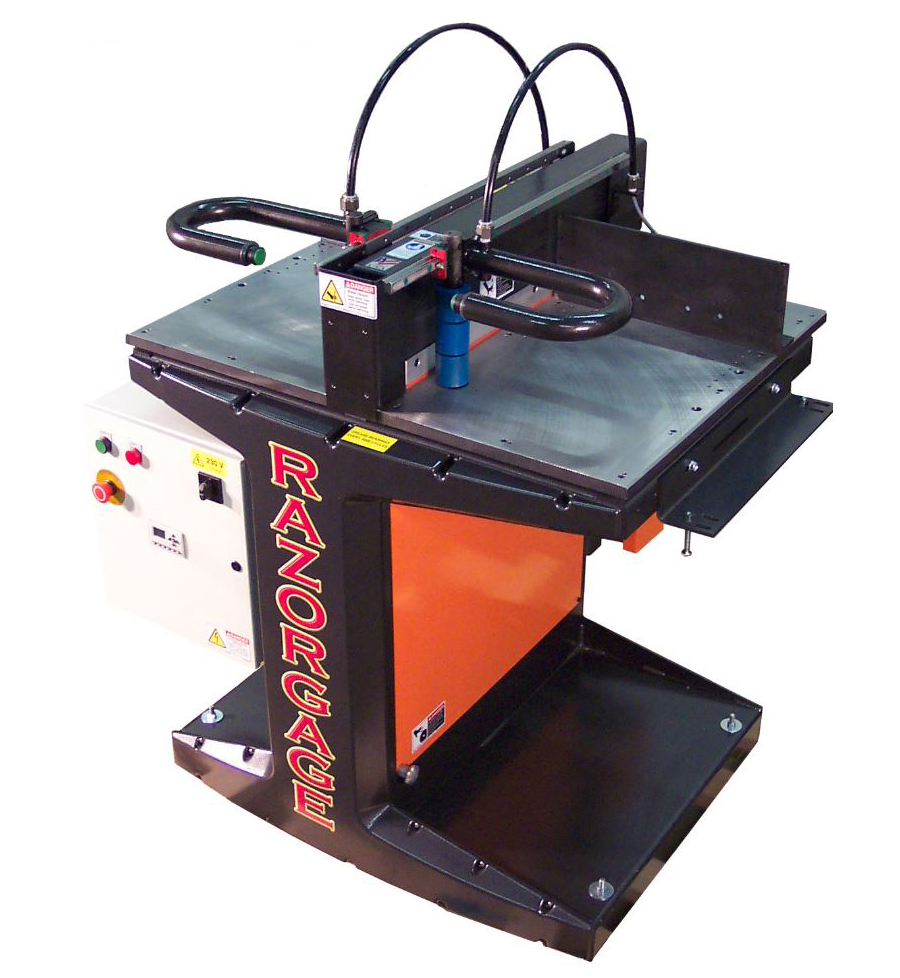

RazorGage says its Cyclone 600 upcut saw provides razor-sharp cuts 20 inches wide with virtually no tearout. The saw blade mounts directly to a 7.5 HP Baldor spindle motor. The intelligent frequency drive controls the saw blade RPM and requires no air logic to operate.  It cuts materials up to 1" x 20" or 6" x 6" and has a 16" fence and table surface on both sides of the saw blade. The top clamp travels on linear bearings and is driven by its own cylinder for independent adjusting of the clamping speed and pressure.
