Lidar measurement systems

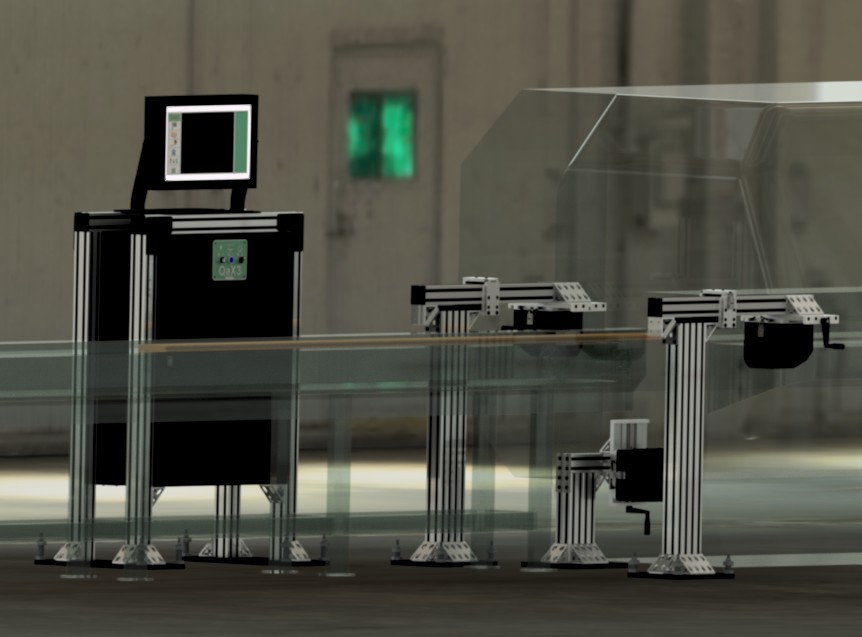

Aircle Tech's QaX Lidar measurement (LM) systems are designed to measure moving profiles and shapes at feed rates up to 1000 feet a minute with accuracy down to .0005 inches, while also building reports and tallies. The system can identify missing or misaligned features, pits, holes, bumps, cracks, splits, and misshapen form while providing non-contact, high resolution, 3D dimensional detail of fast moving profiles. Each unit in the series utilizes image capture paired with micro line laser image dimension and range (Lidar) interpolation to create a full matrix point cloud of the profile, which is then compared to a teach-in template to measure any deviations that may have occurred. The QaX series is available in four measurement heads with optional swing arms available.
