Brock Commons - UBC's 18-storey wooden tower, installs final wood panel
By Bill Esler
August 16, 2016 | 6:40 pm CDT
VANCOUVER - The final panel was laid on Brock Commons Phase 1, an 18-storey mass timber hybrid residence under construction at the University of British Columbia (UBC).

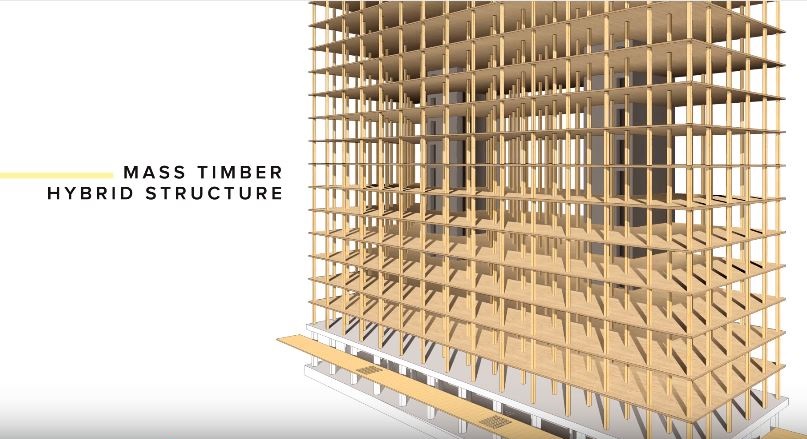

The building will be comprised of 17 storeys of mass timber construction above one storey of concrete and two concrete stair cores. The floor structure will consist of 5-ply cross laminated timber (CLT) panels supported on glue laminated timber (glulam) columns. The roof will be made of prefabricated sections of steel beams and metal decking.
Brock Commons will have capacity for just over 400 students with floorplans ranging from single bed studios to 4-bed accommodations. Study and social spaces will be located on the ground floor with a student lounge on the 18th floor, where the wood structure will be left exposed for demonstration and educational purposes.
Wood, a renewable material, was chosen in part to reflect the university’s commitment to sustainability. The building was also designed to meet LEED Gold certification.
The estimated avoided and sequestered greenhouse gases from the wood used in the building is equivalent to removing 511 cars off the road for a year. The total carbon dioxide equivalent avoided by using wood products over other materials in the building is more than 2,432 metric tonnes. Learn more about tall wood buildings at www.naturallywood.com/emerging
***Estimated by the Wood Carbon Calculator for Buildings, based on research by Sathre, R. and J. O’Connor, 2010, A Synthesis of Research on Wood Products and Greenhouse Gas Impacts, FPInnovations (this relates to carbon stored and avoided GHG).
***CO2 refers to CO2 equivalent.
